Scope of Application
This machine precisely controls warp length and arrangement, suitable for batch warping of various short-fiber yarns, and is pre-weaving preparation equipment for various weaving machines without shuttles.
Main Technical Features
1. Carefully designed and precisely manufactured according to JIS specifications.
2. Direct warp beam drive, frequency conversion motor achieves stepless setting of warping line speed, and constant line speed.
3. Equipped with a pressure roller device, inclined linear guide rail pressing, stable and constant pressure, and a closed-loop pressure control system composed of a high-precision proportional pressure reducing valve, which can achieve constant warp beam winding density. (Patent Technology)
4. Full-automatic computer touch screen human-machine interface, easy to operate, clear and intuitive display.
5. Pneumatic up and down shafts, opening and closing, manual and automatic settings can be arbitrarily set, prompted by the touch screen, easy to operate, safe and reliable.
6. Safety device, locking the warp beam fork, in case of sudden power failure or air interruption, the warp beam will not fall off.
7. Warp beam and pressure roller, interconnected length measurement method, higher accuracy.
8. Braking on both sides of the warp beam for faster and more stable stopping.
9. The pressure roller quickly rebounds after pressing to avoid friction between the pressure roller and the warp beam yarn surface. (Patent Technology)
|
Inclined guide rail, linear pressure device |

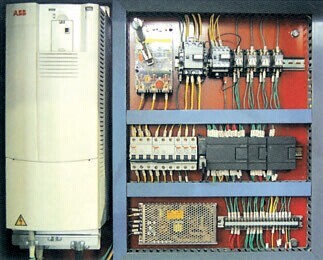

Main Electrical Control Board |
GA125 Main Technical Parameters
1. Width: 1800mm (Other widths can be customized according to user requirements)
2. Maximum warp beam flange diameter: 800mm (1000mm can be customized according to user requirements)
3. Warping speed: 100-1000m/min
4. Warp beam lifting method: Pneumatic
5. Pressure roller support method: 15° inclined bed surface sliding type
6. Braking distance: ≤ 3m (500m/min)
7. Warp length error: ≤ 0.2%
8. Bobbin frame: Rectangular (V) type fixed or rotary type
9. Bobbin distance, number of bobbins: 250X250mm, 560 bobbins (basic type)
10. Main motor power: 11Kw, 4 poles
11. Main unit weight: 4800kg
12. Bobbin frame weight: 3000Kg

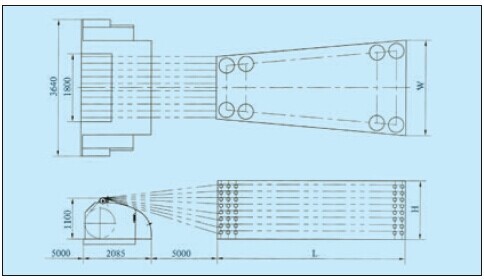

GA125 Structure and Installation Layout Diagram
Keywords:
GA125 high-speed sectional warping machine
