GA163D (Intelligent) Type Slitting and Warping Machine

Category:

Sectional Warping Machines

E-mail:

4fj@4fj.com

Inquire Now

Product Details

Scope of Application

　　Suitable for sectional warping of fine woolen fabrics, chemical fiber filament fabrics, yarn-dyed fabrics, silk fabrics, and special industrial textiles. It can serve as a pre-weaving preparation equipment for shuttleless looms such as rapier, projectile, water-jet, and air-jet looms, and is the preferred equipment for weaving mills to develop various high-grade and special fabrics.

Main Technical Features

1. Warping and beaming drives are controlled by AC frequency conversion, operating at constant linear speed, constant tension, and high speed.
2. The integrated hydraulic device, combining mechanical, electrical, hydraulic, and pneumatic elements, generates oil pressure to drive the caliper brake, completing warping brake control; a proportional valve controls the external steel belt damping method to achieve automatic control of beaming tension.
3. The warping servo drive adopts a dual servo motor ball screw structure, offering fast response and high precision. Both strip positioning and starting point positioning are automatically completed with a single button press.
4. The warping table's forward and backward movement is controlled by AC digital servo and ball screw drive, and it is equipped with a pressing roller and multiple sensors.
5. During the warping process, the warping table retracts equidistantly.
6. The servo motor measures the thickness of the warped yarn layer multiple times through the ball screw drive to achieve automatic measurement of warping displacement parameters (patented technology). The pressing roller ensures a flatter yarn surface.
7. Large steel drum, precisely dynamically balanced.

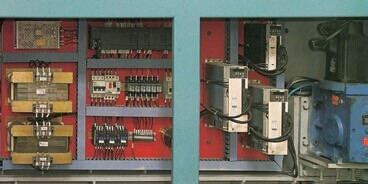

8. Adopts communication technology, integrating mechanical, electrical, pneumatic, and hydraulic design. Equipped with multiple sets of PLCs, multiple AC digital servo frequency converters, and two touch screens, the system is advanced, reliable, and highly automated.
9. The main warping machine moves on ground rails, while the splitting reed frame and creel are fixed, ensuring that the strip remains centered relative to the splitting reed frame and creel, resulting in uniform tension of the selvedge yarns.
10. Frequency conversion motor and high-precision helical gear reducer ensure constant tension and stable transmission during beaming.
11. Safety railing device, ensuring safer and more reliable operation during beaming.
12. Equipped with various types of creels; spindle pitch and number of spindles can be selected according to user requirements.
13. Various types of tensioners and warp stop motion devices are available for user selection.
14. The warping machine is equipped with an electrostatic elimination device, and the beaming machine is equipped with an oiling device and a pressure device.

Warping Touch Display

Beaming Touch Display

Main Technical Parameters

1. Effective width: 2300 - 4600 (mm)
2. Weaving beam flange diameter: 800, 1000 (mm)
3. Warping speed: 0 - 800 (m/min)
4. Beaming speed: 0 - 200 (m/min)
5. Beaming tension accuracy: "≤ ±2%"
6. Braking distance: "> 3 (m) (at 500m/min)"
7. Maximum beaming tension: "> 10000N"
8. Large drum cylinder diameter: 1026mm
9. Cone length: 1010mm
10. Cone taper: 90
11. Reed traverse speed: 0.001 - 9.999 (mm/r) (stepless)
12. Strip positioning accuracy: "> 0.1 (mm)"
13. Reed following accuracy: 0.02%
14. Strip width range: 0.1-400.0mm
15. Warping computer workstation: 10.4-inch color touch screen
16. Beaming computer workstation: 10.4-inch monochrome touch screen
17. Creel spindle pitch: 250x250 (mm) (wool, cotton, blended yarn), 290x290 (chemical fiber filament)

18. Number of creel spindles: 420 (wool, cotton, blended yarn), 480 (chemical fiber filament)
19. Input voltage: 3x380V±10%
20. Installed capacity: 40KVA, 50KVA
21. Warping motor power: 11(KW), 15(KW)
22. Beaming motor power: 22(KW), 30(KW)
23. Main machine weight: 7500kg
24. Creel weight: 2500kg
