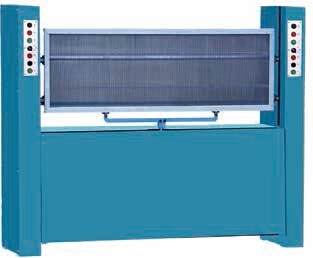

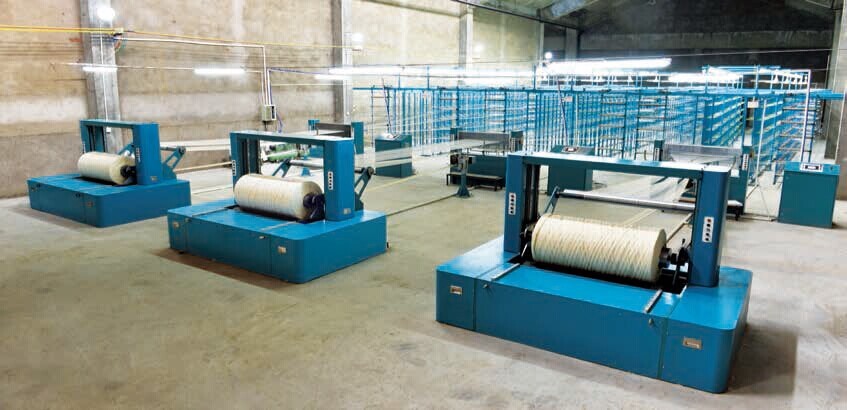

GA251B type ball warping machine

Category:

Jean Weaving Series Warping Machines

E-mail:

4fj@4fj.com

Inquire Now

Product Details

Scope of application

　　This machine bundles warp yarn packages, winding them into a ball shape for bundled dyeing.

Process Flow Diagram

Main Technical Features

1. Uses AC frequency conversion speed regulation technology, with computer-controlled stepless speed adjustment to ensure constant winding speed.
2. Computer touch screen human-machine interface, displaying large amounts of information clearly, intuitively, and easily.
3. Unique pressurization structure, using a precision proportional valve to form a closed-loop pressure control, achieving constant ball warp winding density.
4. Uses advanced technologies such as computers and PLCs, and has functions such as fixed-length winding automatic stop, full-ball automatic stop, and broken-yarn automatic stop to meet process needs.
5. The left and right side plates use high-quality steel plates and double linear guides, with a reasonable structure, good rigidity, and smoother machine operation.
6. The ball warp full-spindle operation method makes loading and unloading more convenient and easier.
7. The reciprocating feed port uses imported self-lubricating engineering plastic linear components, eliminating the need for maintenance of linear bearings.
8. Actively uses synchronous belt drive to reduce noise during equipment operation.
9. The main roller uses hydraulic clamp braking, and the rewinding roller uses electromagnetic braking, ensuring smooth and reliable stopping.
10. It can achieve non-stop warp rope threading with a divided heald control method, reducing yarn tension fluctuations.
11. The dividing heald uses a mechanical up-and-down swing device, operating smoothly and reliably, preventing point wear of the heald teeth.
12. Various package frames, spindle distances, and spindle numbers are available for user selection.
13. Various types of tensioners and broken-yarn automatic stop devices are available for user selection.

Main Technical Parameters

1. Forming diameter: ≤ 1400mm
2. Forming width: 1000mm, 1200mm
3. Sizing speed: ≤ 400m/min
4. Warp length error: ≤ 0.2%
5. Pressing pressure: 1000N-6000N
6. Main motor power: 7.5KW
7. Main unit weight: 2500kg
8. Main unit dimensions: 2410mm (length) × 1860mm (width) × 1870mm (height)
